Product Details:
Payment & Shipping Terms:
|
| Yarn Type: | E-Glass | Weight: | 450-750g/m2 |
|---|---|---|---|
| Weave Type: | Plain Weave | Max Width: | 3800mm |
| Color: | Black And Brown | Mesh Size: | 1X1 ,4X4mm |
| Highlight: | Screen Printing ptfe conveyor belt,Screen Printing mesh conveyor belt |
||

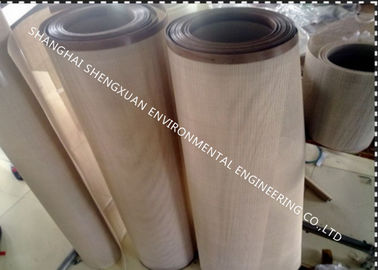

Bullnose Joint Coated Open Mesh Conveyor Belt
Most Ideal Splices for Dryer Belts are:
Bull-nose Joint: Made of specially woven open weave mesh from KEVLAR thread, this extremely strong seam is then stitched to the Belts ends, resulting in an open weave Mesh Seam that does not block airflow
Alligator Joint: Exceptionally strong splice is constructed with metal alligator lacing through which a pin is placed to complete the splice
Edge Reinforcement: We offers a wide range of edge reinforcements for belts in order to protect the belt edges from wear, abrasion and snagging, the reinforcements strengthen the sides and support guide strips
Parameters
| Item No. | 6001-6015 |
| Color | black,yellow,brown |
| Mesh size | 1x1,4x4,2x2,10x10mm |
| Weight of FB | 260-450GSM |
| Total weight | 430- 570GSM |
| Tesnile strenth | 1100-2000N/5cm |
| Max width | 3800mm |
| Temperature range | -70-260 Deg C |
Specifications
| Item No. | Color | Mesh Size(mm) | Weight of Fiberglass | Total weight | Max Width |
| 6001 | Brown | 1X1 | 367 g/m2 | 440 g/m2 | 3.8m |
| 6001B | Black | 1x1 | 367 g/m2 | 440 g/m2 | 3.8m |
| 6003 | Black | 4x4 | 343 g/m2 | 480 g/m2 | 3.8m |
| 6004 | Brown | 4x4 | 343 g/m2 | 475 g/m2 | 3.8m |
| 6007 | Brown | 4x4 | 417 g/m2 | 570 g/m2 | 3.8m |
| 6008 | Brown | 4x4 | 414 g/m2 | 570 g/m2 | 3.8m |
| 6012 | Black | 4x4 | 414 g/m2 | 570 g/m2 | 3.8m |

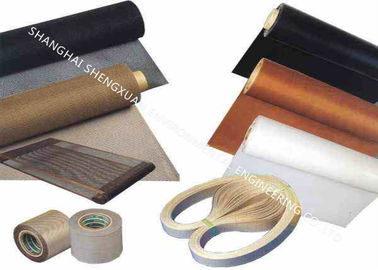

Types of PTFE Coated Fiberglass Cloth:
PTFE Coated Glass Fabric
PTFE Glass Open Mesh Fabric
PTFE Glass Fabric With Silicon Adhesive
PTFE Glass Anti-Static Fabrics
