Product Details:
Payment & Shipping Terms:
|
| Material: | Polyester Filament | Diameter: | DN 76mm |
|---|---|---|---|
| Length: | 100 Meters | Structure: | Belt Conveyor |
| Load Capacity: | 18-100m3/h | Transport: | By Air |
| Weight: | 3.5kg/m2 | Wilde: | 270mm/330mm/400mm/450mm/550mm/900mm |
| Air Permeabilityl: | 3.2-10m3/m2/m | Material:: | Polyester |
| Product Discribe: | 100% Polyester Air Slide Fabric Aeration Fluidization Cloth | Warranty: | 1 Year |
| Highlight: | air slide fabric,air slide canvas |
||

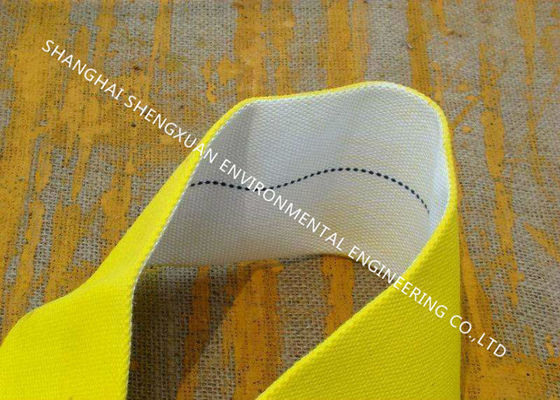

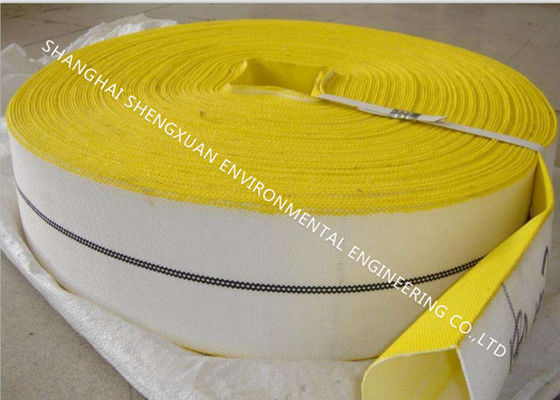

Bulk cement trailer self unloading pneumatic the Airslide hose
Our air slide hose are usually used for bulk cement trailer discharging. It always woking on the bottom of the trailer. Through inflation by air compressor, it makes the bulk cement discharging from the trailer. Some people called Aeration hose. It is really very similar as Fire hose frame. But it's much more strength and impact toughness than fire hose. One side of our hose is the PU coating. It is for block off the air flow.
Characteristics:
One side air permeable,other side PU-coated.Good abrasion resistance and long service life all chemical fibers,lightweight and flexible,easy to coil ageing and ozone resistant-weather resistant minimum maintenance.
cold resistant to -30 Deg C
heat resistant to +160 Deg C
Parameter
| Air slide hose type | Internal Diameter(mm) | Flat width (mm) | Weight (g/m2) |
| 92 | 58 | 92 | 180 |
| 113 | 71 | 113 | 210 |
| 120 | 76 | 120 | 240 |
| 125 | 77 | 125 | 300 |
| Air resistance | Pressure in 0.2 m3/m2/h@H2Omm |
| High | 600-900 |
| Low | 200-500 |
