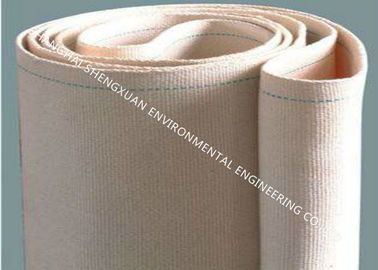

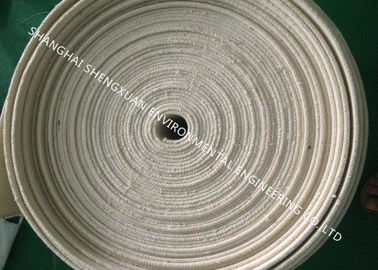

Horizontal Conveyor 50 Meters Length Polyester Air Slide Fabric

horizontal belt conveyor Polyester Air Slide Fabric Fluidization Fabrics White Color 5mm thickness 600mm width 50meters

We manufacture and export special fabrics for Air Slide Filter fabric used in pneumatic conveyor lines. Furthermore, our company has also introduced aeration and handling of powdered materials in silos, hoppers and stacks such as in cement works, lime factories, chemical plants and mining. These Industrial Air Slide Fabrics are preferred by many distinct industries to cater their wide requirements. The multi-ply structure of the fabrics with varied weight, thickness and permeability enables uniformity in the flow effect on the slide surface, greater mechanical resistance to abrasion and tensile strength and a vast porosity range. Air Slide Belt Fabric produced by us is best suitable customers’ diversified needs and can be obtained at a very cost effective price that suits to their budget.

Austin Industries  fluidization fabric  is ideal for the alumina transportation : many smelters are using it in their airslides. It improves alumina conveying as buffer silos, siphon smelter pots and fluidized bottom for filters.

Working principle of air slide fabric
In cement plant
The Air slide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide belt can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.

Specifications:

Raw Material =100% spun fiber polyester

Weight in average = 4000 g/m2
Thickness = 5mm
Mean Air Permeability = 400 m3/m2h @350H2O

Pressure: 2000pa for middle air resistance

4000pa for high air resistance

Breaking Strength- Warp=>6000 N/5cm X 20cm
Breaking Strength- Weft= >3000 N/ 5cm X 20cm
Breaking Elongation - warp=<5%
Breaking Elongation -weft=<5%

Max Width: 2800mm

Operating Temperature < 150 deg.C
Recommended Maximum Continues <180 deg.C
Recommended Maximum Surge = 180 deg.C

The other applications:

Thomas Meal (Fertilizer), Rubber Compounds, Sinter Dust, Catalysts Sodium Sulfate, Soap Powder

Conveyor Systems, Ventilator Systems, Aeration Systems
